GoodWe Lynx Spring Battery Offer. Add a GoodWe Lynx Home F Series (HV) battery to your solar system and put the federal Cheaper Home Batteries Program rebate toward it, backed by our 30-Day Price Beat Guarantee.
GoodWe and the Lynx Home F Series
GoodWe has built its name on pairing solar inverters with batteries that are designed to work as one system rather than two separate purchases. The Lynx Home F Series (HV) is a high-voltage, modular battery built specifically to sit alongside a GoodWe hybrid or retrofit inverter.
This means GoodWe controls both sides of the connection: the battery and its matching hybrid inverter range, and as such, the stacking, communication, and safety behaviour between them is engineered as a single package. For a household already on a GoodWe inverter, or planning one, that’s a more predictable and higher-performance fit than mixing brands.
A GoodWe Lynx Home F Series battery lets your storage grow in step with your household, not in one oversized jump.
Who the GoodWe Lynx Home F Series Is Best For
Growing Households
Start at a 6.6kWh, 2-module tower and add modules later as your energy use increases, without replacing what you already own.
Homes on Single or Three-Phase Power
Suitable for 1 and 3 phase properties through GoodWe’s full hybrid and retrofit inverter range.
Existing GoodWe Inverter Owners
Pairs directly with a GoodWe hybrid or retrofit inverter already on the roof, cutting out a lot of the compatibility guesswork.
Buyers Who Want a Fast, Simple Install
Stackable, self-detecting modules with pre-wired communication cables mean less time on site for your installer.
about GoodWe solar panels
GoodWe Lynx Home F Series (HV) Specs

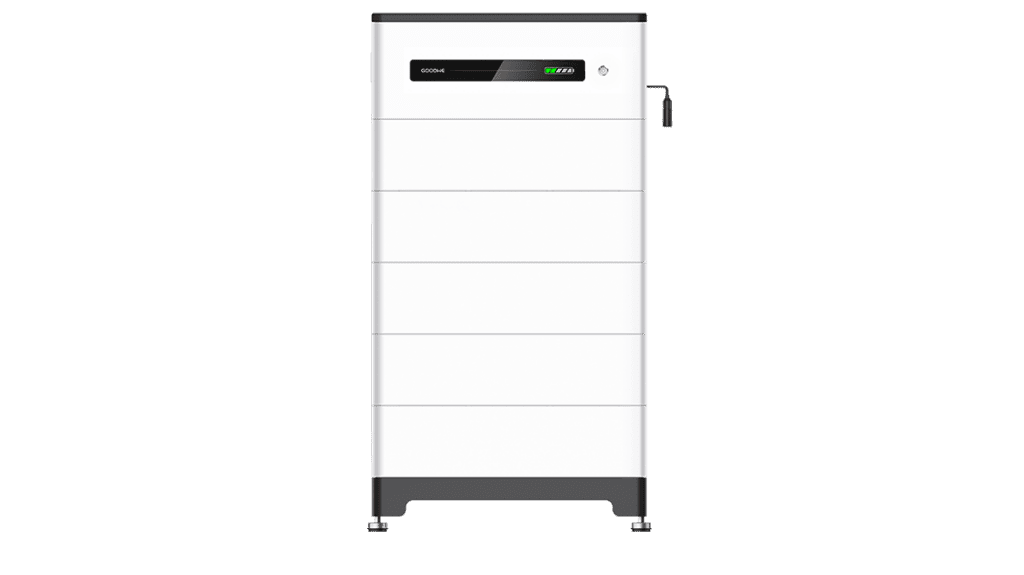

The Lynx Home F Series (HV) is built around a single 3.27kWh module, the LX F3.3-H, which stacks two to five high to give four factory configurations from 6.55kWh up to 16.38kWh of usable energy. Multiple towers can run in parallel, up to eight, for a combined 131kWh where a project calls for it.
Every configuration uses the same lithium iron phosphate (LFP) cell chemistry, the same IP55-rated enclosure, and the same decade-long warranty terms, so choosing a smaller unit today doesn’t mean settling for a lower-spec battery.
| Usable Capacity | 6.6 to 16.4kWh (2 to 5 x 3.27kWh modules) |
| Dimensions (Width x Height x Depth) | 600 x 625 x 380mm on the smallest unit, taller per module added |
| No. of Cells | 108 |
| Maximum Efficiency | 24.3% |
| Weight | 115 to 244kg depending on configuration |
| Chemistry | Lithium Iron Phosphate (LFP) |
| Nominal DC Power | 5.12 to 12.80kW, scaling with capacity |
| Ingress Protection | IP55 |
| Compatible Inverters | GoodWe BH, EH, BT and ET hybrid and retrofit inverters, 1 and 3 phase |
| Warranty | 10 years product and 10 years performance |
| Certifications | CEC listed, IEC 62619, IEC 62040, CE, RCM, UN38.3 |
Ready to size a GoodWe Lynx Home F Series for your home?
Every home draws power differently. Tell us how yours does and we’ll size a Lynx Home F Series tower to match, from a single 6.6kWh module up to a full 16.4kWh stack.
GoodWe Lynx Home F Series Review
GoodWe built the Lynx Home F Series around flexibility rather than a single fixed unit, and the spec sheet backs that up. Where some batteries force a household into one capacity, the Lynx Home F Series lets you pick the module count that matches your current usage and add to it later, all while keeping the same LFP cell chemistry and enclosure rating across every size in the range.
- Scales from 6.6kWh to 16.4kWh in 3.27kWh steps, with parallel towers available up to 131kWh
- LFP cell chemistry chosen for thermal stability and long-term cycle life
- Works with 1 and 3 phase power through the GoodWe hybrid and retrofit inverter range
- Soft-start surge protection plus automatic reboot after undervoltage
- CEC listed, with a 10-year product warranty and a 10-year performance warranty
Scalability and flexibility
GoodWe batteries are ideal for growing households.
Safety and build quality
Strong, reliable solar batteries for the long term.
Value and ownership
Great price for solar starters and expanders alike.
GoodWe Lynx Home F Series (HV) Features and Benefits
Room to Add Capacity Later
- Two modules give you 6.6kWh to start.
- Add up to five per tower, or run towers in parallel, and you've got a battery that expands as your energy use does rather than one you outgrow.
Fast, Simple Installation
- Self-detecting modules and pre-wired communication cables
- Plug-and-play stacking on site
- Cutting down the labour and complexity of a manual setup
Engineered for Safety and Longevity
- Protects the battery and inverter from sudden power surges
- Restores operation after undervoltage without requiring a manual reset
- Designed for excellent cycle stability and long-term performance
Remote Monitoring Through Your Inverter
- Identify system issues remotely through the connected GoodWe inverter
- Keep the system updated without requiring an on-site visit
- Manage day-to-day system monitoring remotely, reducing the need for technician visits
One Manufacturer, One Support Line
- Battery and inverter come from the same company, engineered to work together, with a single support channel if something needs attention.
Weighing up whether a modular GoodWe battery suits your roof and your inverter?
Our team can walk you through it over the phone.
GoodWe Lynx Home F Series Pros and Cons
A straight look at what the spec sheet supports and where it falls short.
Pros
Scales in 3.27kWh steps from 6.6kWh to 16.4kWh without replacing existing hardware
Works with 1 and 3 phase power through GoodWe's hybrid and retrofit inverters
Self-detecting, plug-and-play modules for a faster install
A decade of cover on both the product itself and its performance
CEC listed with IEC 62619 and IEC 62040 safety certification
Cons
No published round-trip efficiency figure, so it can't be compared on that spec alone
Needs a separate GoodWe hybrid or retrofit inverter, an added decision for households not already on GoodWe
IP55 rated, a step below the IP66 enclosure on GoodWe's own ESA Series
Not sure if the Lynx Home F Series suits your setup?
Our installers can check your existing inverter against GoodWe’s compatibility list before you commit to a module count.
Popular GoodWe Lynx Home F Series Comparisons
A quick side-by-side before you commit, using the other batteries on our shelves.
GoodWe ESA Series vs GoodWe Lynx Home F Series
GoodWe Lynx Home F Series vs Sungrow SBR
GoodWe Lynx Home F Series vs Tesla Powerwall 3
PROCESS
Our Solar Solutions Process
At Volteam Electric, we make going solar a seamless and enjoyable experience. Here’s a step-by-step guide to our solar solutions process
Step 1
Share Your Details
Step 2
Schedule Site Visit
Next, we’ll arrange an in-person consultation and site visit.
Our team will assess your property and discuss your solar goals, ensuring we understand your unique requirements.
Step 3
Receive a Quotation
After the site visit, we will provide you with a detailed quotation outlining the recommended solar solutions, including costs and potential savings.
Step 4
Confirm Installation Details
Once you’ve reviewed the quotation and are ready to proceed, we’ll confirm the installation date and finalize the price.
We ensure complete transparency, so you know exactly what to expect.
Step 5
Installation
On the scheduled date, our professional team from Volteam Electric will arrive at your property to install your solar system.
We handle all aspects of the installation process with expertise and care.
Step 6
Enjoy the Benefits
Now it’s time to enjoy the benefits of your new solar system! Experience greater savings on your energy bills, and stay in touch with Volteam Electric for any maintenance or repair needs. We’re here to support you every step of the way!
Compare solar and battery
Compare the best solar solutions for your home in one place. Use our tool to evaluate batteries, solar panels, EV chargers, and inverters. Start comparing today!
Why You Should Choose Volteam
Why You Should Choose Volteam Electric
CEC Accredited Solar Installers
Customisable plans
We offer flexible and customisable plans depending on your solar power needs and budget.
30-Day Price Beat Guarantee
Solar Battery Specialists
Take charge of your energy production and gain independence from big energy companies. We also offer upgrades and solutions for solar batteries.
Smart EV Charger Installations
Industry leading support
Our electricians and experts are always ready to answer your concerns and inquiries.
CEC Accredited Solar Installers
Customisable plans
We offer flexible and customisable plans depending on your solar power needs and budget.
30-Day Price Beat Guarantee
Solar Battery Specialists
Take charge of your energy production and gain independence from big energy companies. We also offer upgrades and solutions for solar batteries.
Smart EV Charger Installations
Industry leading support
Our electricians and experts are always ready to answer your concerns and inquiries.
Frequently Asked Questions
Is the GoodWe Lynx Home F Series any good?
Yes. It carries a CEC listing, LFP cell chemistry for long-term stability, and warranty cover that runs 10 years on both product and performance. Its main strength is the module range, letting a household pick 6.6kWh to 16.4kWh rather than one fixed size.
Can I add more capacity to my GoodWe Lynx Home F Series later?
Yes. Each tower takes 2 to 5 modules, and up to 8 towers can run in parallel for a combined 131kWh, so expansion doesn't mean replacing what's already installed.
What inverters does the GoodWe Lynx Home F Series work with?
It's designed for GoodWe BH, EH, BT and ET hybrid and retrofit inverters, across 1 and 3-phase properties.
Does the GoodWe Lynx Home F Series qualify for the Cheaper Home Batteries Program?
Yes. Every configuration sits within the scheme's 5 to 100kWh nominal capacity range, so the federal rebate is applied automatically by your accredited installer at the point of sale.
How is the GoodWe Lynx Home F Series different from the GoodWe ESA Series?
The Lynx Home F Series is a modular battery that pairs with a separate GoodWe inverter, giving you flexible capacity in 3.27kWh steps. The ESA Series is an all-in-one unit that bundles the inverter, battery and energy management system into a single cabinet, trading some of that modularity for a simpler single-box setup.
